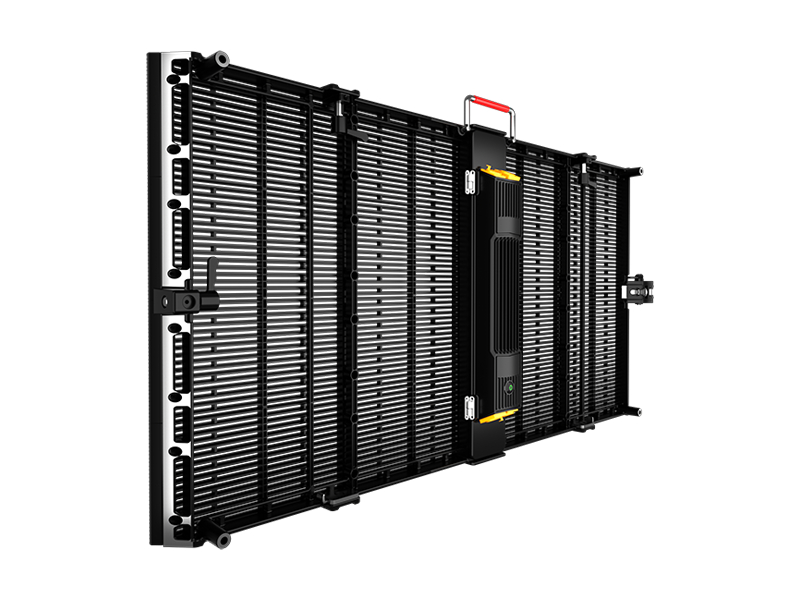

P3.91 indoor and outdoor Transparent LED screen

★ Lightweight design, portable installation
★ Seamless splicing, good flatness
★ High refresh, high brightness
★ Widely application, environmental protection
Request A Quick Quote
Description Specification

Item

Technical parameter














LED module

physical distance

3.91-7.81mm




pixel configuration

1R1G1B

Module size

500*125mm

LED encapsulation

SMD1921

pixel densitydot/㎡)

32768

pixel type

Full colour

Module pixels

128*16

Scan method

1/8scan

Drive IC

Constant current

Power supply voltage

5V

Operating Temp.

-30 - +50



















LED cabinet

Screen material

Profile aluminum




Screen body color

Black / Silver / white

Cabinet size

1000*1000MM

Screen  resolution

256*128

Transparency rate

65%

White balance brightness

5000cd/

horizontal view angle

140egree

vertical viewing angle

140degree

planeness

1mm

Module gap

1mm

Cabinet weight

8KG

maximum power /

1000W

Average power/

500W

Frame rate

≥60Hz/s

refresh rate

1920/3840Hz

gray scale

16 bits

Input signal

RF,S-video,RGB,RGBHV,YUV,YC&Com

MTBF

>5000 hours

Life sapn

>100000 hours
